Camp5 KL East paneling

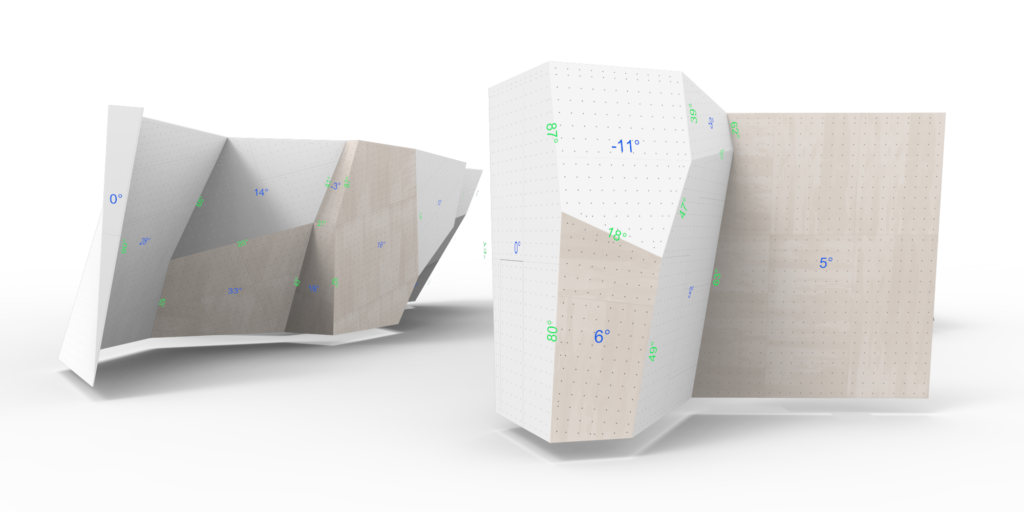

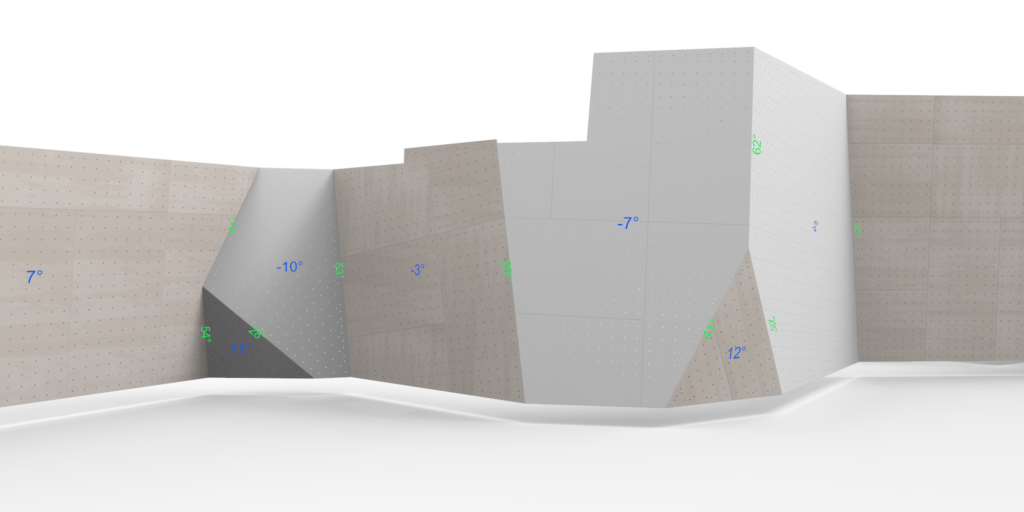

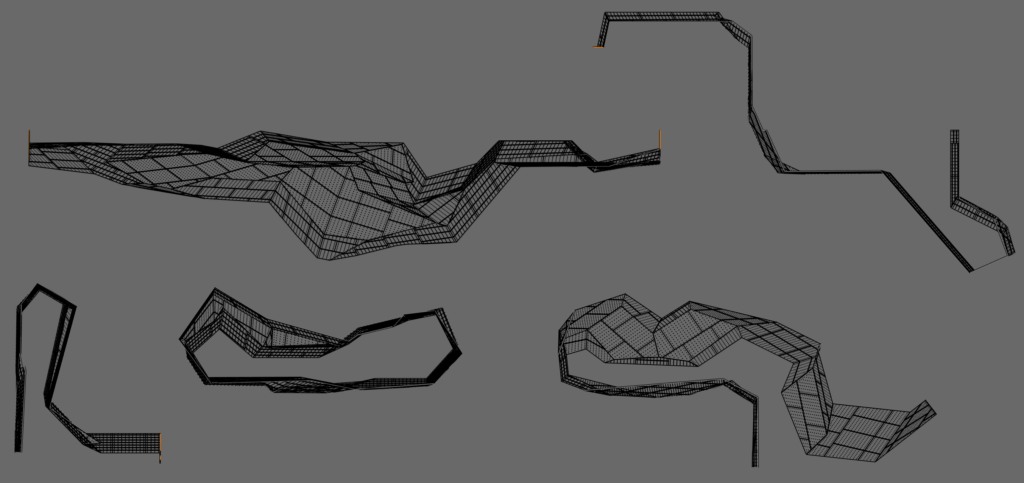

Five wall sectors: Comp, lead tower, toprope / speed wall and two boulder walls.

Under the brand called Camp5, my friends own five climbing gyms in Kuala Lumpur, Malaysia. Soon they’ll open another huge gym with a total of 1340 m² of climbing surface. The walls were designed by co-owner Patrick Andrey. I got to do the paneling which consists of placing panels on the planes of the walls and orienting all panels and planes horizontally to generate plans and data for CNC fabrication.

Information for each panel streamed to an Excel chart.

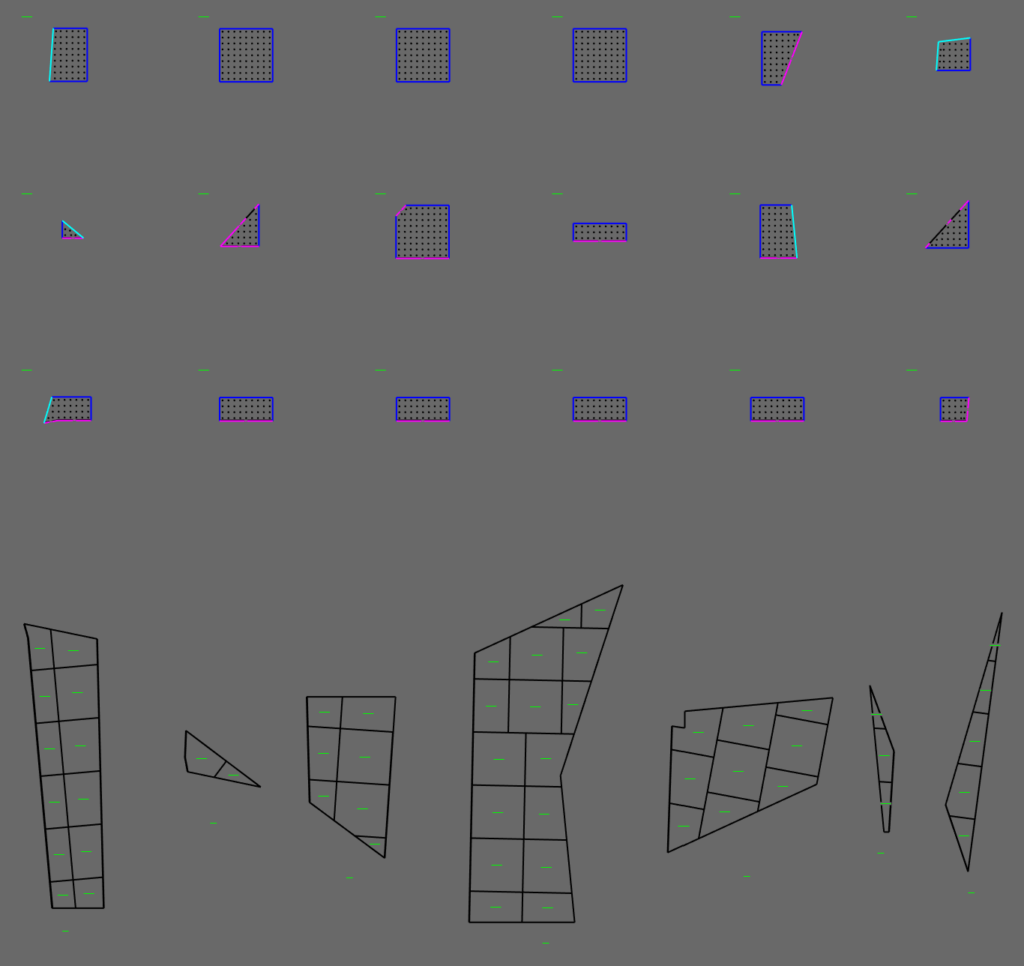

Panels above and assembled planes below.
Panel edges color coded: angled cuts with degree info (pink), vertical cuts (light blue), stock edge (blue).
